QXmppMucManagerV2 Class Reference

XEP-0045: Multi-User Chat Manager with support for XEP-0402: PEP Native Bookmarks. More...

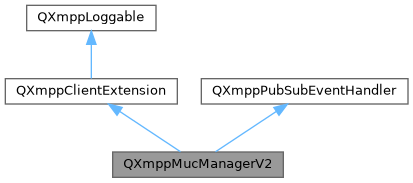

Inheritance diagram for QXmppMucManagerV2:

Collaboration diagram for QXmppMucManagerV2:

Public Member Functions
	QXmppMucManagerV2 ()
	Default constructor.
QStringList	discoveryFeatures () const override
	Supported service discovery features.
const std::optional< QList< QXmppMucBookmark > > &	bookmarks () const
	Retrieved bookmarks.
Q_SIGNAL void	bookmarksReset ()
Q_SIGNAL void	bookmarksAdded (const QList< QXmppMucBookmark > &newBookmarks)
Q_SIGNAL void	bookmarksChanged (const QList< QXmppMucManagerV2::BookmarkChange > &bookmarkUpdates)
Q_SIGNAL void	bookmarksRemoved (const QList< QString > &removedBookmarkJids)
QXmppTask< QXmpp::Result<> >	setBookmark (QXmppMucBookmark &&bookmark)
	Adds or updates the bookmark for a MUC.
QXmppTask< QXmpp::Result<> >	removeBookmark (const QString &jid)
	Removes a bookmark.
QXmppTask< QXmpp::Result<> >	setRoomAvatar (const QString &jid, const Avatar &avatar)
QXmppTask< QXmpp::Result<> >	removeRoomAvatar (const QString &jid)
QXmppTask< QXmpp::Result< std::optional< Avatar > > >	fetchRoomAvatar (const QString &jid)
bool	handlePubSubEvent (const QDomElement &element, const QString &pubSubService, const QString &nodeName) override
	Handles incoming PubSub events.
Public Member Functions inherited from QXmppClientExtension
	QXmppClientExtension ()
virtual QList< QXmppDiscoIdentity >	discoveryIdentities () const
virtual bool	handleStanza (const QDomElement &stanza)
	You need to implement this method to process incoming XMPP stanzas.
virtual bool	handleStanza (const QDomElement &stanza, const std::optional< QXmppE2eeMetadata > &e2eeMetadata)
	You need to implement this method to process incoming XMPP stanzas.
Public Member Functions inherited from QXmppLoggable
	QXmppLoggable (QObject *parent=nullptr)
Q_SIGNAL void	setGauge (const QString &gauge, double value)
	Sets the given gauge to value.
Q_SIGNAL void	logMessage (QXmppLogger::MessageType type, const QString &msg)
	This signal is emitted to send logging messages.
Q_SIGNAL void	updateCounter (const QString &counter, qint64 amount=1)
	Updates the given counter by amount.

Protected Member Functions
void	onRegistered (QXmppClient *client) override
void	onUnregistered (QXmppClient *client) override
Protected Member Functions inherited from QXmppClientExtension
QXmppClient *	client () const
virtual void	setClient (QXmppClient *client)
void	injectIq (const QDomElement &element, const std::optional< QXmppE2eeMetadata > &e2eeMetadata)
bool	injectMessage (QXmppMessage &&message)
Protected Member Functions inherited from QXmppLoggable
void	debug (const QString &message)
	Logs a debugging message.
void	info (const QString &message)
	Logs an informational message.
void	warning (const QString &message)
	Logs a warning message.
void	logReceived (const QString &message)
	Logs a received packet.
void	logSent (const QString &message)
	Logs a sent packet.

Friends
class	QXmppMucManagerV2Private
class	tst_QXmppMuc

Detailed Description

XEP-0045: Multi-User Chat Manager with support for XEP-0402: PEP Native Bookmarks.

The manager automatically fetches bookmarks on session establishment and afterwards emits bookmarksReset(), bookmarksAdded(), bookmarksRemoved() and bookmarksChanged().

The QXmppPubSubManager must be registered with the client.

Note

This manager is work-in-progress and joining MUCs is not yet implemented.

Since

QXmpp 1.13

Member Function Documentation

bookmarksAdded()

QXmppMucManagerV2::bookmarksAdded

(

const QList< QXmppMucBookmark > &

newBookmarks

)

Emitted when bookmarks have been added. This is triggered by PubSub event notifications.

bookmarksChanged()

QXmppMucManagerV2::bookmarksChanged

(

const QList< QXmppMucManagerV2::BookmarkChange > &

bookmarkUpdates

)

Emitted when bookmarks have been changed.

bookmarksRemoved()

QXmppMucManagerV2::bookmarksRemoved

(

const QList< QString > &

removedBookmarkJids

)

Emitted when bookmarks are retracted.

bookmarksReset()

QXmppMucManagerV2::bookmarksReset

(

)

Emitted when the total set of bookmarks is reset, e.g. when receiving the initial bookmarks items query.

discoveryFeatures()

QStringList QXmppMucManagerV2::discoveryFeatures ( ) const

overridevirtual

Supported service discovery features.

Reimplemented from QXmppClientExtension.

fetchRoomAvatar()

QXmppTask< Result< std::optional< QXmppMucManagerV2::Avatar > > > QXmppMucManagerV2::fetchRoomAvatar

(

const QString &

jid

)

Fetches the Avatar of a MUC room

First fetches the avatar hashes via the muc#roominfo form from service discovery information and then fetches the avatar itself via vcard-temp.

Note

This currently does not do any caching and does not listen for avatar changes.

Parameters

jid	JID of the MUC room

Returns

nullopt if VCards are not supported in this MUC or no avatar has been published, otherwise the published avatar

handlePubSubEvent()

bool QXmppMucManagerV2::handlePubSubEvent ( const QDomElement &  element, const QString &  pubSubService, const QString &  nodeName  )

overridevirtual

Handles incoming PubSub events.

Implements QXmppPubSubEventHandler.

onRegistered()

void QXmppMucManagerV2::onRegistered ( QXmppClient *  client )

overrideprotectedvirtual

Called after the extension has been added to a QXmppClient.

Parameters

client

Reimplemented from QXmppClientExtension.

onUnregistered()

void QXmppMucManagerV2::onUnregistered ( QXmppClient *  client )

overrideprotectedvirtual

Called after the extension has been removed from a QXmppClient.

Parameters

client

Reimplemented from QXmppClientExtension.

removeRoomAvatar()

QXmppTask< QXmpp::Result<> > QXmppMucManagerV2::removeRoomAvatar

(

const QString &

jid

)

Removes the avatar of a MUC room.

Requires the MUC service to support "vcard-temp" and to be "an owner or some other priviledged entity" of the MUC.

Parameters

jid	JID of the MUC room

setRoomAvatar()

QXmppTask< QXmpp::Result<> > QXmppMucManagerV2::setRoomAvatar	(	const QString &	jid,
		const Avatar &	avatar
	)

Sets the avatar of a MUC room.

Requires the MUC service to support "vcard-temp" and to be "an owner or some other priviledged entity" of the MUC.

Parameters

jid	JID of the MUC room
avatar	Avatar to be set

---

The documentation for this class was generated from the following files:

• QXmppMucManagerV2.h
• QXmppMucManagerV2.cpp
